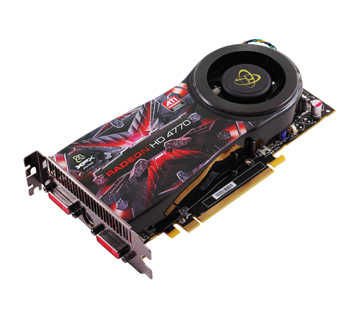

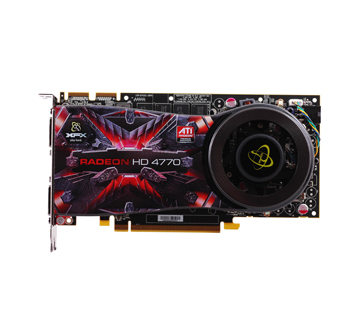

New graphic-card (XFX ATi Radeon™ HD 4770)
While my old nVidia 8800GT started having a few trouble with the fan and not supporting HDMI I decided to switch it out with a newer card. I needed a card that was not to big since my computer is in a very small case. So to suit my needs the choice fell on ATi’s 4700 series more precise XFX ATi HD4770. Many might think this card is in the low-end well it might be so, but taken into consideration it’s one of the first card’s based on the 40nm technology it’s still powerful while being extremely cheap.
Specifications:
| GPU Clock MHz | 750 MHz |
| Stream Processors | 640 |
| Bus Type | PCI-E 2.0 |
| Performance | Standard |
| Memory Interface Bus (bit) | 128 |
| Memory Type | DDR5 |
| Memory Size (MB) | 512 MB |
| Memory Clock (MHz) | 3200 MHz |
| Output HDCP Capable | 1 |
| Microsoft® DirectX® Support | 10.1 |
| Shader Model Support | 4.1 |
| Open GL Optimization and Support | 3.1 |
| Dimensions (Metric) | 20.8 x 11 x 3.81 |
| Max Resolution Analog | 2048 x 1536 |
| Max Resolution Digital | 2560 x 1600 |
| ATI Radeon CrossFireX™ Technology | Yes |
| ATI Radeon PowerPlay™ | Yes |
| ATI Radeon Stream Technology | Yes |
| ATI Radeon HyperMemory™ | Yes |
